| Capabilities | |
|---|---|
| Capacity | 800 MT/Month |
| Weight Range | up to 60 MT single piece |
| Maximum Size | 8M x 8M x 4M |

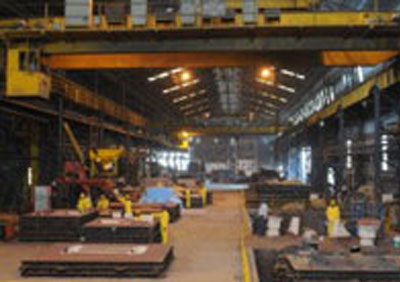

| Area under Crane | 38000 Sq.M |
| EOT Cranes | 23 Nos. |
| Max. Lifting Capacity | 160 MT |

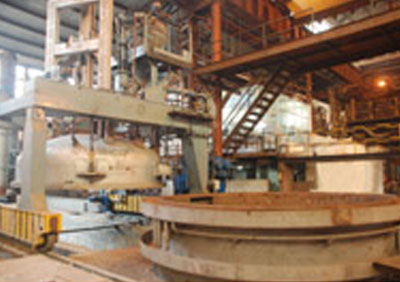

| Melting & Refining | |
|---|---|
| Arc Furnace | 10 MT |
| Induction Furnace | 2 x 11 MT Dual Track |
| AOD Furnace | 16 MT |
| LRF Furnace | 2 x 40 T & 25 T double station |
| VD/VOD Furnace | 40 MT |
| Moulding | |
|---|---|

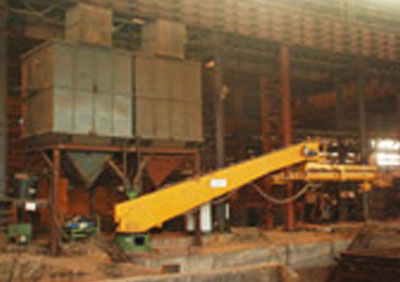

| Continuous Sand Mixer | 30 MT / Hr. - 2 Nos. |
| Continuous Sand Mixer | 5 MT / Hr. - 1 Nos. |
| Sand Reclamation Unit | 8 MT / Hr. - 2 Nos. |
| Sand Systems | Alphaset, Phenolic & Sodium Silicate |
| Machining | |
|---|---|
| In-house capabilities - Approximately 20 machines, including : | |
| Vertical Boring Machines | 3 Nos. |
| Horizontal Boring Machines | 4 Nos. |
| Plano Miller | 2 Nos. |
| Pattern Making | |
|---|---|
| CNC machine & manual process Patterns in - Wood, Resin, Expanded Polystyrene (Thermocol), Cement, Metal Large space for storage of old patterns |
